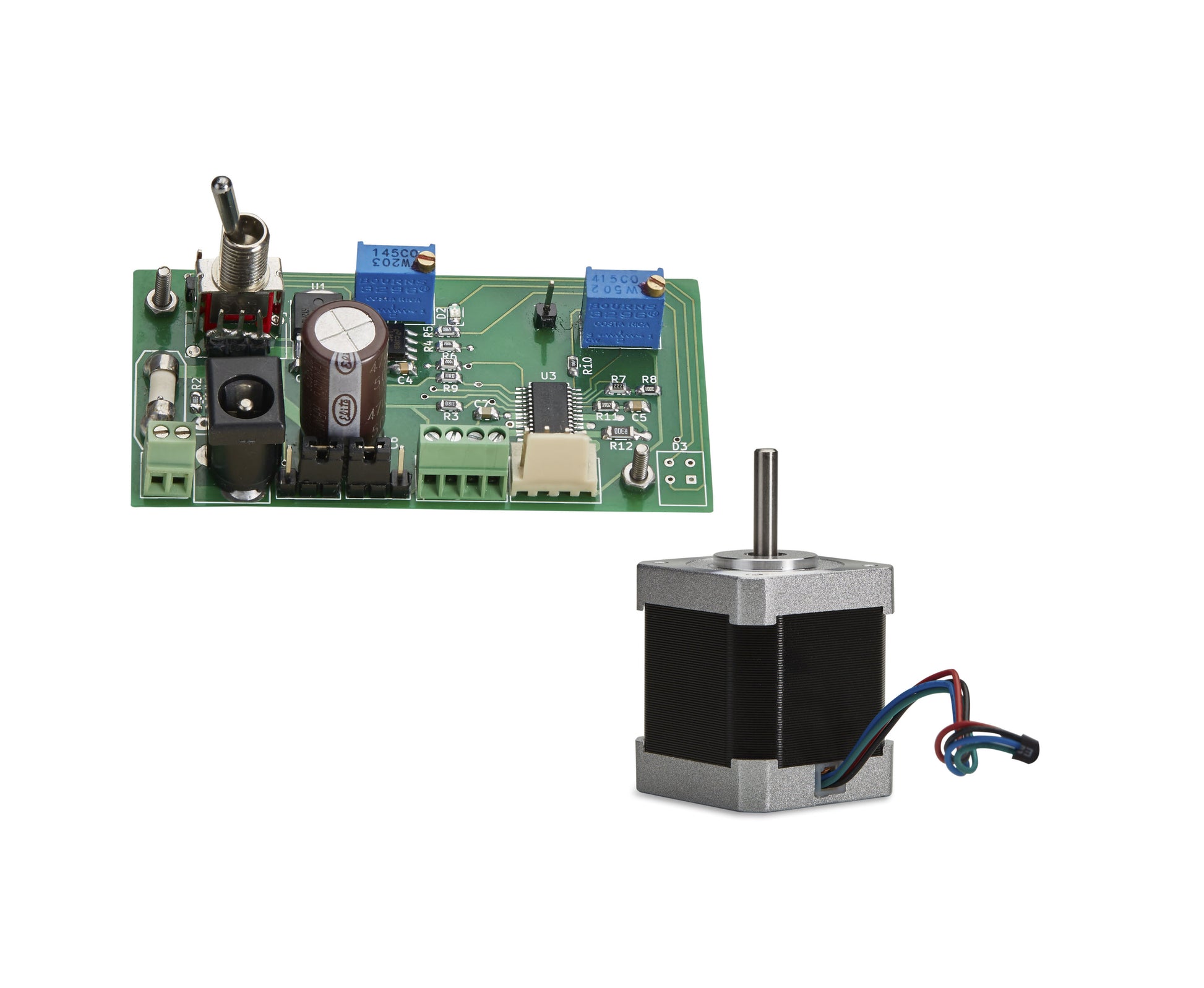

Standalone micro stepping runner for four-wire, bipolar stepper motors. Adjust speed, current and step size.

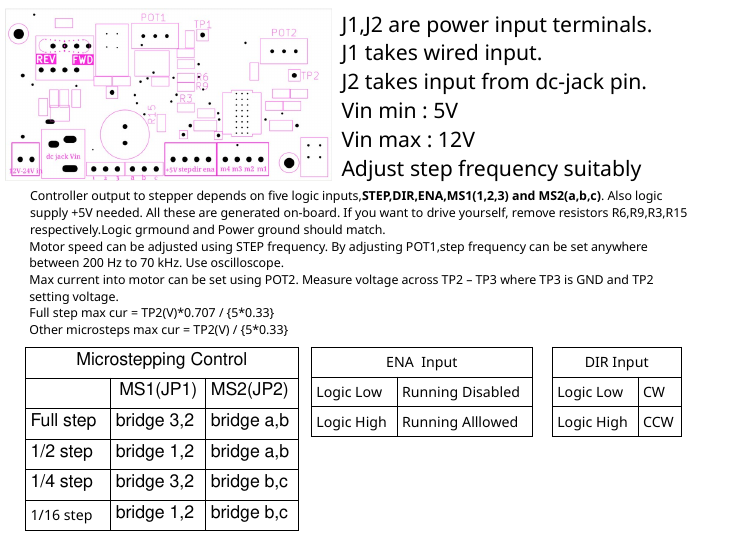

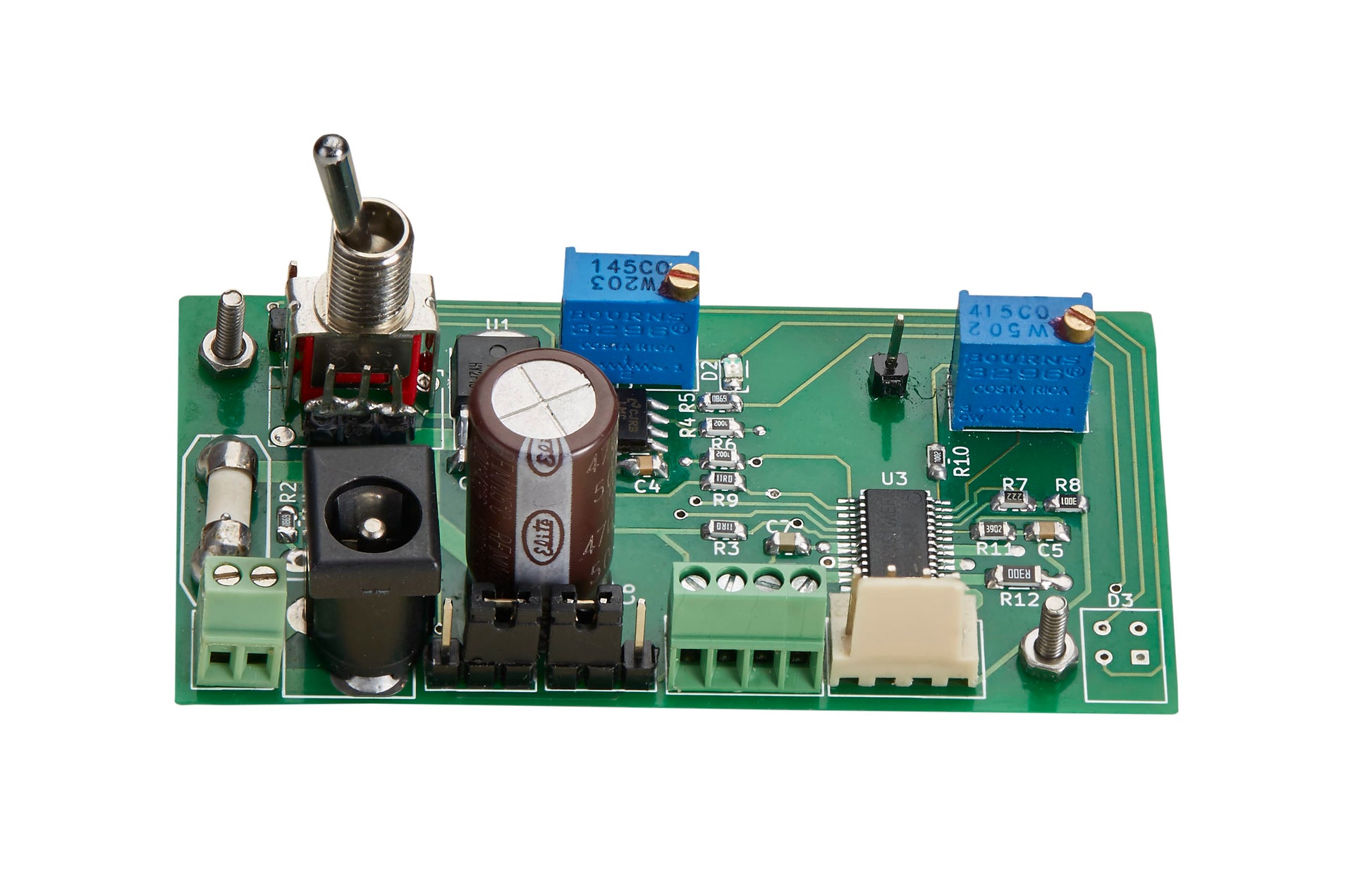

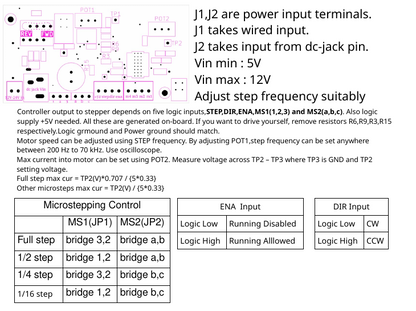

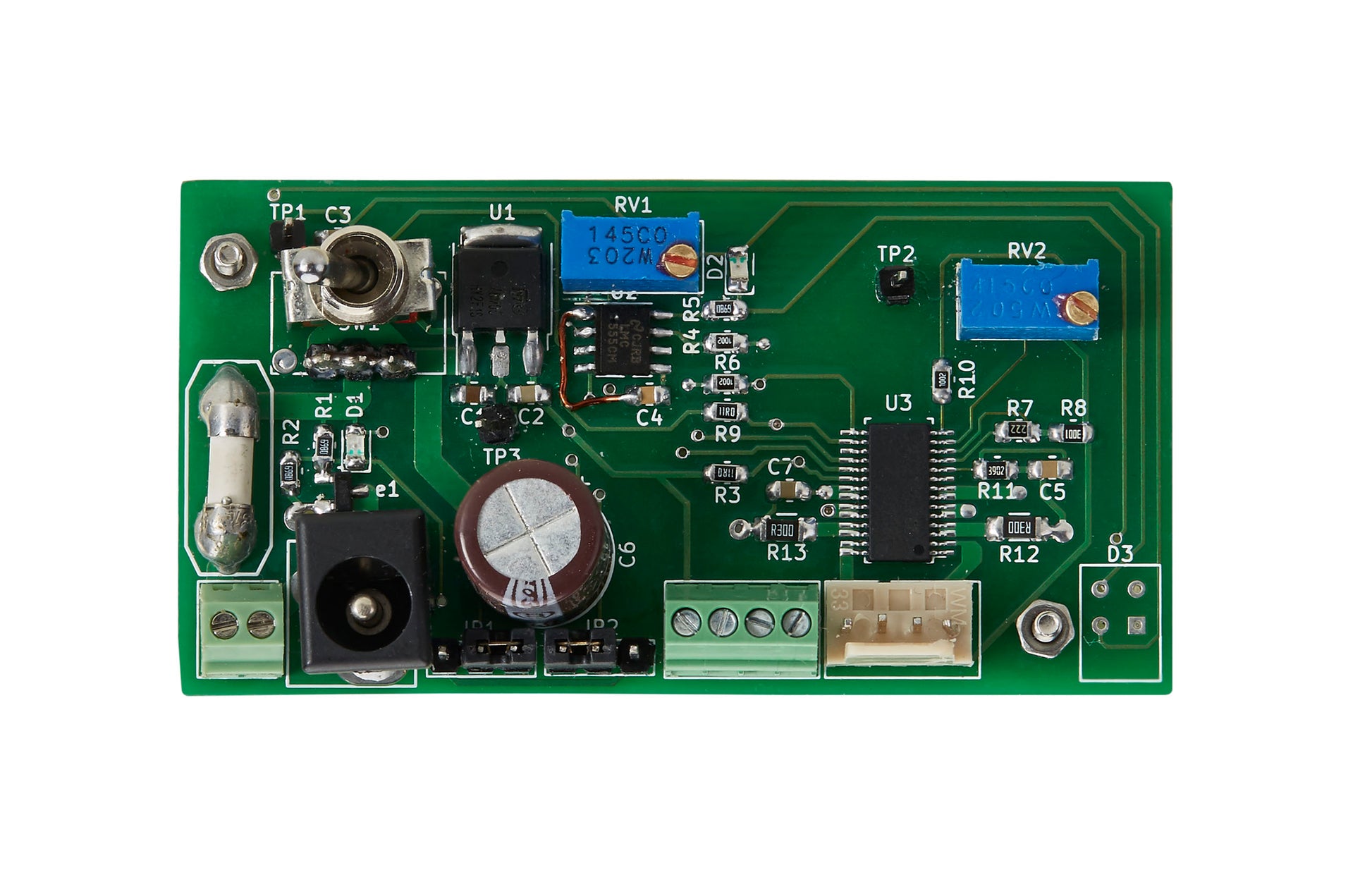

A very flexible and versatile stepper motor runner/driver board for four-wire, bipolar stepper motors. A toggle switch is given to change the direction of rotation. Further, two potentiometers are provided to adjust the frequency/speed and current independently. The board can be placed flat on the floor or fit in a housing. If you are an experienced developer or hobbyist, you can gain micro-stepping by changing pin-short positions. You can also input your own step or enable micro-stepping logic inputs by isolating on-board resistors on the runner board. The accompanying manual explains how the motor driver board can be customized. This board may be used in DIY, industrial, or laboratory applications. The board comes in two variants, one with a max current of 1.5A and the other with a max current of 2.5A.
